5V-WS2812B-72LED/M

5V-WS2812B-72LED/M addressable LED strip 256 kinds of brightness display and 24 bit color display. Each pixel has its own color and brightness. You can control them individually and set them to any color or animation you want.

Send Inquiry

Product Description

5V-WS2812B-72LED/M addressable LED strip 256 kinds of brightness display and 24 bit color display. Each pixel has its own color and brightness. You can control them individually and set them to any color or animation you want.

It can be programmed with Arduino, fastled library, raspberry PI, fadecandy, t1000s, etc. It can also be controlled by sp105e, sp103e, hc008 and other pre programmed ws2811 ws2812b controllers.

Our company focuses on the production of LED strip with many years of experience. We have rich experience in the production process and quality control of LED strip. We accurately understand the needs of customers in foreign trade and develop various applications and specifications of various LED strip products for customers. I hope we will have a good meeting, looking forward to your email! ~


1.Product introduction 5V-WS2812B-72LED/M


Individually addressable. Dream full color programmable LED bar, ws2812b led, ws2812b IC, built-in 5050smd. Static effect, flash by flash effect, special effect, etc. 256 brightness display and 24 bit color display. The quality of pure gold wire is better. Longer service life, more stable


It has 3-pin jst-sm connectors at both ends for easy installation and independent power / ground wires at both ends. Each LED can be cut off without damaging the rest of the ribbon. You can shorten, lengthen or bend as needed.


5050smd is built in the addressable IC. Each pixel can have its own color and brightness according to its own wishes. Compatible with k1000c and other programmable controllers. It supports application controllers such as sp110e, sp105e, sp108e, sp110e, music controllers such as csy07, csy08, X2, sp106e, sp107e, and intelligent WiFi voice controllers such as sp501e. Does not include power adapter or controller


Only DC5V is supported. Do not try DC12V or DC24V power supply. Matching with the controller, you can display hundreds of lighting effects, such as color curtain up / running water / rain / jumping flash, etc. you can also edit animation effects through CorelDRAW / flash / ledit software. The power adapter and controller need to be purchased separately


Make LED screen, led wall, advertising board, suitable for hotel, KTV, bar, outdoor advertising signs, Holiday Christmas or wedding party decoration. There are IP30 / IP65 led strips on the back, so you can easily paste them on walls or other items as needed. IP67 has clip and screw.



2.Product parameters 5V-WS2812B-72LED/M


Model: 5m / roll ws2812b dream color LED light band

Light source: SMD 5050 RGB

Wavelength (nm): R / 650nm; g / 520nm; B / 460nm

FPCB color: Black

Protection grade: IP20 Not waterproof

Led quantity: 72 LED / m, total 5m, 360 LED

IC model: built in ws2812b IC, one IC controls one LED

Working voltage: 5V DC

Maximum working current: 17A

Power:17W / m, 85W / roll

RGB sequence: g / R / b

Beam angle: 120 degrees

Operating temperature: - 20 to 60 ℃

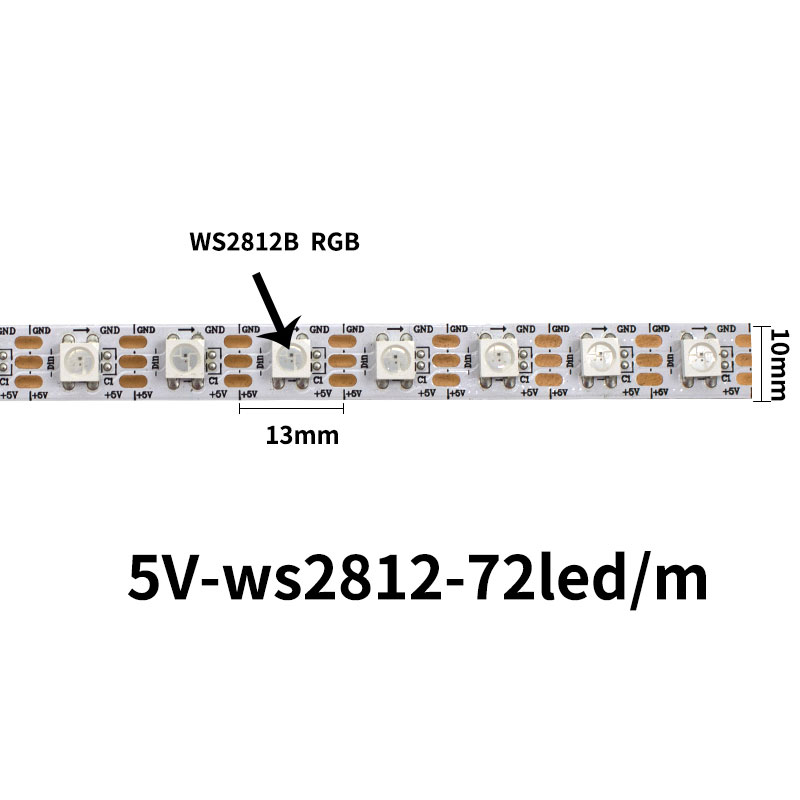

Dimensions: length 500 cm (5m) x width 1 cm x thickness 0.15 cm

Net weight: 250g

Service life: > 50000 hours

Warm tips: LED light bar does not contain power supply and controller.


Please note that


1) You must use 5V DC power supply to power these strips, do not use higher than 6V, otherwise you can destroy the whole strip.

2) The LED strip is made of 50 cm FPCB, so each 50 cm has a solder joint. However, this small defect has no adverse effect on the performance of the strip. In fact, most of the LED lights on the market are half a meter long.

3) If you want a datasheet for ws2812b, please contact us and we will send it to your email.



3.Company production 5V-WS2812B-72LED/M



4.FAQ


Q1. What is the Warranty for the led strips?

A1: For the led strips,we have 3 years warranty.If any quality problems on our side occur in this period ,we will take on the shipping cost and replacement.



Q2. Is there cheap shipping cost to import to our country?

A2: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

      For urgent orders,we suggest via air to airport plus our ship partner send to your door.



Q3. What's your leadtime?

A3. The sample order leadtime will be 3-5days .

      Small batch order 10-15 days

      Negotiable delivery time for large orders



Q4. Can I have a sample order for led strip?

A4: Yes, we welcome sample order to test and check quality.



Q5. What is your produce ability?

A5. We are a professinal manufacture led strip in Shenzhen and we can supply 400,000 meters per month.



Q6.Do you accept customized products?

A6.Yes, we accept customized products. We can produce all kinds of led strip products according to your requirements
